Circular Clarifier Design Calculation . In a circular clarifier it could be up to 10%. The result of this calculation can be compared with design.

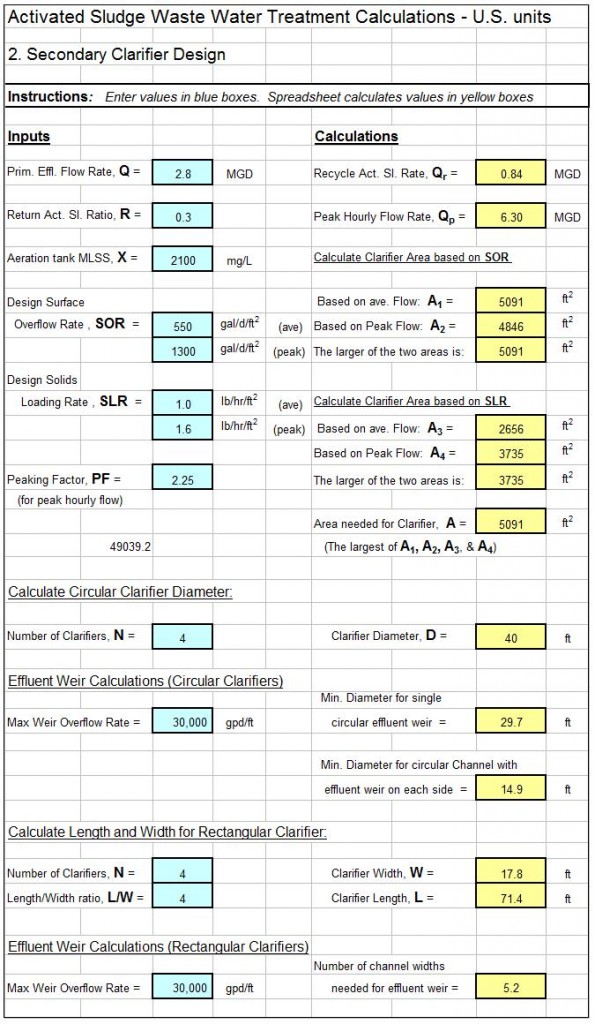

secondary clarifier design Archives Low Cost Easy to Use from www.engineeringexcelspreadsheets.com

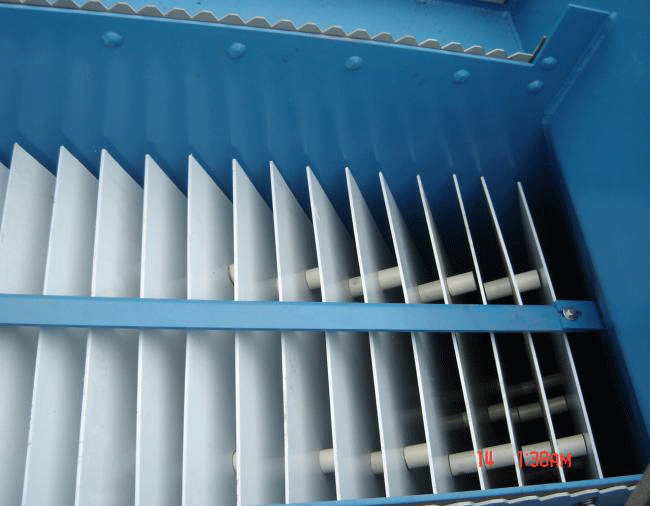

The circular peripheral flow clarifier offered by pcs operates with the water flow entering the system at the periphery. Calculations are carried out and presented for comparison with experimental measurements of point velocities in a circular clarifier in operation at an. Lamella clarifier design calculation the ipc series is a cost competitive clarifier which utilizes the time proven concept of inclined plate clarification unlike conventional circular or rectangular basins an inclined plate clarifier relies solely on gravity to settle and concentrate suspended solids in the pre treated liquid flow the most
secondary clarifier design Archives Low Cost Easy to Use
First determine the area of the clarifier: The following criteria are recommended for design: The activated sludge system has mlss concentration of 4160 mg/l. Design circular secondary clarifiers for an extended aeration activated sludge system receiving a flow of 250 000 m3/d average, 375 000 m3/d peak flow.
Source: www.thewastewaterblog.com
5.2 design loading 5.2.1 primary clarifiers primary clarifier designs are primarily based upon surface overflow rate. In rectangular clarifiers length/width ratio is between 1.5 and 7.5 (usually 3). Normally, weir overflow rates of 10,000 to 20,000 gpd/ft 2 are used in the design of a settling tank. These spreadsheets also make weir overflow calculations to aid in effluent weir design..
Source: www.agitatormanufacturer.com

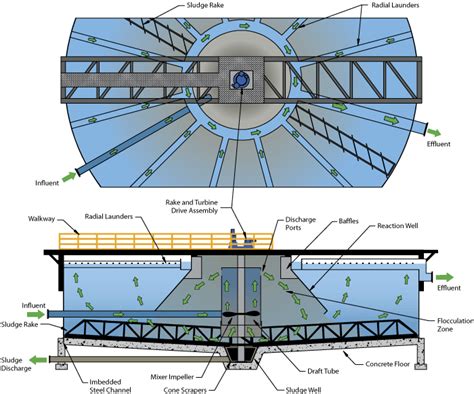

Circular mechanical clarifier center feed equipment specifications pollution control systems (pcs) is pleased to provide the following equipment specifications for your consideration. Operator training and certification unit. Calculate the detention time in hours for a clarifier with a volume of 25,000 gallons that receives a flow of 310,000 gal/day. Clarifier design calculations, figure 16 2 a rectangular and b circular.
Source: graver.com
Units at a very low cost (only $11.95) in our spreadsheet store. The water flow is evenly distributed and spirals down around the annulus of the clarifier by means of a specially designed baffle skirt. Calculate minimum required surface area and clarifier diameter 3. Clarifier design bhel, circular clarifiers slideshare, how to design clarifier for primary treatment of water, improve.
Source: www.slideserve.com
The result of this calculation can be compared with design. In the following table, primary clarifiers design parameters values are established. Calculate minimum required surface area and clarifier diameter 3. Area = ??(900 ft 2) area = 2826 ft 2. The following criteria are recommended for design:
Source: www.engineeringexcelspreadsheets.com
In circular clarifiers the radius/height is usually between 2.5 and 8. Determining the hydraulic loading ratio required to meet your effluent requirements (ppm, mg/l) is an important step in the design and sizing of any clarification system. The result of this calculation can be compared with design. Calculate minimum required surface area and clarifier diameter 3. Most design engineers prefer.
Source: www.khnwatertreatment.com
Calculations are carried out and presented for comparison with experimental measurements of point velocities in a circular clarifier in operation at an. These spreadsheets also make weir overflow calculations to aid in effluent weir design. Area = ??(30 ft) 2. One (1) prefabricated center feed circular mechanical clarifier, complete and ready for operation in accordance with the plans and specifications.
Source: www.pollutioncontrolsystem.com
To calculate weir circumference, use: Detention time = volume flow = 25,000 gallons 310,000 gallons/day = 0.08 days 0.08 days x 24 hours/days = 1.9 hours. Clarifier design bhel, circular clarifiers slideshare, how to design clarifier for primary treatment of water, improve clarifier and thickener design and operation, ecodyne lamella clarifier, activated sludge secondary clarifier design spreadsheet, clarifier. Size energy.
Source: napier-reid.com
A circular clarifier has a diamter of 60 ft. Lamella clarifier design calculation the ipc series is a cost competitive clarifier which utilizes the time proven concept of inclined plate clarification unlike conventional circular or rectangular basins an inclined plate clarifier relies solely on gravity to settle and concentrate suspended solids in the pre treated liquid flow the most A.
Source: www.chegg.com
This can be done one of two ways: If the flow to the clarifier is 1650 gpm, what is the surface overflow rate, in gpm/ft 2. Circular mechanical clarifier center feed equipment specifications pollution control systems (pcs) is pleased to provide the following equipment specifications for your consideration. Area = ??(30 ft) 2. To calculate weir circumference, use:
